Variacs

Variacs

Variacs are a form of transformer also referred to as Auto-Transformers or Variable Transformers.

One of Three variac cores I employ in parallel on my Tesla Coil compared to a Sharpie.
You can see the single layer Of winding on the core. the external circumference of which has been ground flat and plated with gold alloy. The rotary arm containing the carbon Brushes can be seen on above it.

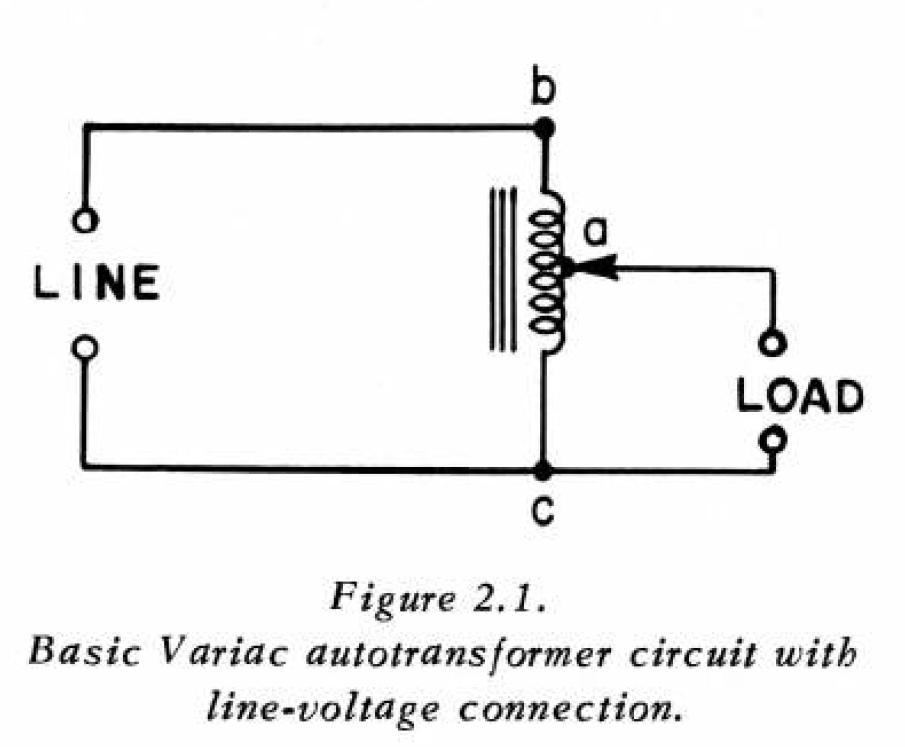

They are characterized by a single winding which is tapped at a variable point, usually via a carbon brush. This enables the user to adjust the turns ratio between the primary and secondary connections via a manual knob or motorized control.

The most interesting part of these devices being that the primary and secondary ARE THE SAME WIRE, there is no isolation between the primary and secondary taps.

A pair of 120V 25A variacs, they are connected electrically in series enabling 240V operation at 25A.
Previously they were run in parallel for 120V 50A, you can see the paralleling choke on the right. The paralleling choke balances the load between each variac, ensuring an equal current distribution in parallel operation. While they can be paralleled without this choke, problems can arise, such as circulating currents, which could cause damage.

In response to an inquiry I made on the TCML (Tesla Coil Mailing List) Chris Reeland sent a few pictures of an old GE handbook to help answer my questions. The text looked to be super nice and very well put together, thus I asked if he could scan the whole thing and host it here for the masses to find and learn from. His Father Ron was happy to assist and promptly scanned it, at a superior scan quality. Many thanks to you both.
The text can be found in the below link.

GE Handbook of Voltage Control with the Variac Autotransformer-compressed
